Rotork Fairchild Model 15 Positive Bias Relay Model 15 Positive Bias Relay is designed for applications that require an output pressure that is the sum of a controlled input signal plus a fixed bias. This pneumatic relay provides an output pressure that represents the input signal pressure plus a preset bias.

Operating Principles

The Model 15 Positive Bias Relay provides an output pressure that represents the input signal pressure plus a preset bias. Mathematically P_o = P_s + K, where P_o is the output pressure, P_s is the signal pressure, and K is the spring constant. This unit, available in several bias range configurations to meet a variety of output requirements, offers excellent sensitivity and high flow capacity in a small volume.

The unit is well-suited to a variety of control applications, including range shifting, and tension control, and pressure control from a remote location.

Model 15 Positive Bias Relay Features

Available in several bias range configurations to meet a variety of output requirements, it offers excellent sensitivity and high flow capacity in a small volume
Well-suited to a variety of control applications, including range shifting, and tension control, and pressure control from a remote location
Sensitive to 1/4" water column variation - permits use in high precision applications
Balanced supply valve minimizes the effects of supply pressure variation
Aspirator tube minimizes downstream pressure droop under flow conditions
Flow capacity of 40 SCFM (68 m3/HR) - allows use in applications requiring high flow and/or fast response
A separate control chamber isolates the diaphragm from the main flow, eliminating hunting and buzzing
Mounting bracket available
Quick and easy field installation

Model 15 Positive Bias Relay Specifications

Supply Pressure: 250 psig, [17.0 BAR], (1700 kPa) maximum
Flow Capacity (SCFM): 40 SCFM (68 m3/HR) @ 100 psig, [7.0 BAR], (700 kPa) supply and 20 psig, [1.5 BAR], (150 kPa) setpoint
Exhaust Capacity (SCFM): 5-1/2 SCFM (9.4 m3/HR) where downstream pressure is 5 psig, [.35 BAR], (35 kPa) above 20 psig, [1.5 BAR], (150 kPa) setpoint
Signal or Output Pressure: 150 psig, [10.0 BAR], (1000 kPa) maximum
Supply Pressure Effect: Less than 0.1 psig, [.007 BAR], (.7 kPa) for 100 psig, [7.0 BAR], (700 kPa) change in supply pressure
Sensitivity: Less than 1/4” (.64 cm) water column
Mounting: Pipe or Panel
Ambient Temperature: -40° to +200°F, (-40 to 93.3°C)
Hazardous Locations: Acceptable for use in Zones 1 and 2 for gas atmosphere; Groups IIA and IIB and Zones 21 and 22 for dust atmospheres
Materials of Construction:
- Body and Housing: Aluminum Alloy
- Trim: Stainless Steel, Brass, Zinc Plated Steel Diaphragms: Buna A and Dacron

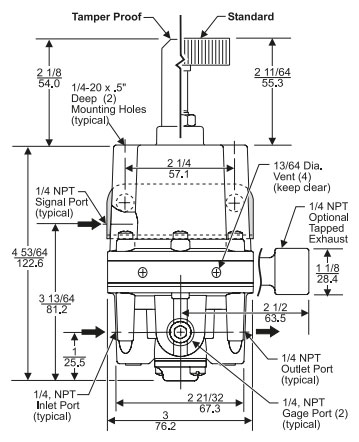

Model 15 Positive Bias Relay Dimensions

Q&A Section with Expand/Collapse Icons

Model 15 Positive Bias Relay Q & A

+ What is the function of the Fairchild Model 15 Relay?

The Model 15 is a positive-bias pneumatic relay: it produces an output pressure equal to the input (signal) pressure plus a fixed spring bias. In formula form, ??_?? = ??_?? + ??, where ??_?? is your signal input and K is the spring constant (bias) set by an internal screw. This makes it ideal for applications like range shifting, remote pressure control, or tension control, where you need to boost a pneumatic signal by a constant offset.

+ What are the pressure and flow specifications of the Model 15?

The Model 15 supports a maximum supply pressure of 250 psig. Its output (or signal) pressure can go up to 150 psig, depending on the bias range selected. For flow, it has a capacity of approximately 40 SCFM (68 m3/hr) under typical conditions (100 psig supply, 20 psig setpoint).

+ How accurate and stable is the output from the M15 relay?

The Model 15 is very sensitive — it can respond to changes as small as ? inch of water column, making it suitable for high-precision pneumatic control. To improve stability, it uses a balanced supply valve that reduces the effects of fluctuations in supply pressure. It also includes an aspirator tube and a separate control chamber to counteract downstream pressure droop and prevent "hunting" or oscillation.

+ What materials is the M15 made from, and what environmental ranges does it support?

The relay housing is made from aluminum, providing durable yet lightweight construction. Internal trim is crafted from stainless steel, brass, and zinc-plated steel, while the diaphragm is typically Buna-A on Dacron. It’s rated to operate in very wide ambient temperatures: from ?40°F up to +200°F (?40°C to 93.3°C). A mounting bracket is available to support flexible field or panel installation.

+ What bias ranges are available, and how do I choose or adjust them?

The Model 15 comes in several bias-range configurations, letting you pick a bias that matches your desired output offset. You adjust the bias using an internal range screw, which changes the preload of the spring (i.e., the “K” in ??_?? = ??_?? + ??). Depending on your application, you can select part numbers (or variants) with different setpoint ranges (e.g., 1–60 psig, 2–150 psig) and port sizes.

Download Rotork Fairchild Model 15 Positive Bias Relay Datasheet

Rotork Fairchild Precision Control Product Overview Catalog

Call us today at (855) 737-4714 to learn more, or fill out our online form and someone will get back to you.
