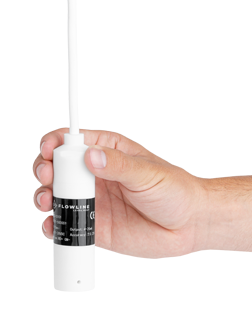

DeltaSpan? LD33 Submersible Anti-Corrosion Pressure Liquid Level Sensor Transmitter from Flowline

DeltaSpan? LD33 Submersible Anti-Corrosion Pressure Liquid Level Sensor Transmitter from FlowlineThe LD33 general purpose anti-corrosion submersible pressure level transmitter provides continuous liquid level measurement up to 34.65’ (10.5m) of water column with a 4-20 mA signal output. Constructed of corrosion-resistant PTFE, the sensor is offered in three level measurement ranges. Select the appropriate model based on your tank height. For convenient installation with junction box termination, package your level sensor with the PVDF pressure sensor mounting kit. Each kit includes a junction box with terminal strip, mounting plug and liquid tight cable connector. The LD33 pressure level sensor is well suited for clean liquids compatible with PTFE and FEP such as acidic and caustic chemicals.

Features

DeltaSpan? LD33 Submersible Anti-Corrosion Pressure Liquid Level Sensor Transmitter Features:

  • Corrosion-resistant PTFE sensor body and FEP cable
  • Rugged sensor designed for complete submergibility
  • Maintenance-free vent tube with filter ensures accuracy
  • Mounting kit for easy tank install and conduit termination
  • Integral surge protection for lightning strikes or power surges
  • Automatic temperature compensation for reliable measurement

Specifications

DeltaSpan? LD33 Submersible Anti-Corrosion Pressure Liquid Level Sensor Transmitter Specifications:

SpecificationDescription
Range-S101: 0 to 5 psi (0.34 bar) or 0 to 11.55’ (0 to 3.5m) wc-S111: 0 to 10 psi (0.69 bar) or 0 to 23.1’ (0 to 7.0m) wc-S121: 0 to 15 psi (1 bar) or 0 to 34.65’ (0 to 10.6m) wc
Accuracy± 0.25% of full scale
ConfigurationNone, fixed span
Supply Voltage11 to 28 VDC
Loop Resistance900 Ohms max @ 30 VDC
Signal Output4-20 mA, two-wire
Process TemperatureF: 14o to 176o; C: -10o to 80o
Temperature CompensationAutomatic
Burst Pressure2 x full scale
Response Time50 ms
Sensor MaterialPTFE (polytetrafluoroethylene)
Enclosure RatingNEMA 6P (IP68)
Cable Type2-conductor, shielded with filtered vent tube
Cable MaterialFEP (fluorinated ethylene propylene)
Cable Length-S101 & S111: 40’ (12.2m); -S121: 60’ (18.3m)
ClassificationGeneral purpose
ComplianceCE, RoHS

Performance

DeltaSpan? LD33 Submersible Anti-Corrosion Pressure Liquid Level Sensor Compatible Products:

LI23 Series Flowline

DATA-LOOP? LEVEL INDICATOR
The general purpose loop powered tank or silo level indicator displays engineering units connected in series with one 4-20 mA continuous level transmitter, and is available with two optional relays and an isolated 4-20 mA repeater. Select this panel mount indicator for use with general purpose two-wire level sensors.

LI55 Series Flowline

DATA-VIEW? LEVEL CONTROLLER
The general purpose AC or DC powered tank or silo level controller displays engineering units with one 4-20 mA level transmitter and is offered in three configurations with optional two or four programmable relays and an isolated 4-20 mA repeater. Each relay can be configured on a single set point as a high or low level alarm, or latched on two set points for automatic fill or empty control in simplex or duplex modes. Select this panel mount controller for use with general purpose two or three-wire level sensors.

Q & A

Q&A Section with Expand/Collapse Icons

DeltaSpan? LD33 Submersible Anti-Corrosion Pressure Liquid Level Sensor Q & A

+ What is the accuracy of the LD33?
The device offers an accuracy of ±0.25% of full scale, providing precise level and pressure readings suitable for most industrial and commercial applications.
+ What type of output signal does the transmitter provide?
It delivers a 4–20 mA two-wire output signal, which is standard for process control and monitoring systems.
+ What is the required power supply for operation?
The sensor operates with a supply voltage of 11 to 28 VDC, supporting most common industrial loop-powered systems.
+ What is the maximum loop resistance supported?
The transmitter can handle up to 900 Ohms loop resistance at 30 VDC.
+ What are the operating temperature limits?

What are the operating temperature limits?

Downloads

Download Flowline DeltaSpan? LD33 Submersible Anti-Corrosion Pressure Liquid Level Transmitter Datasheet
