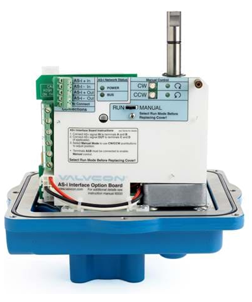

Network Capable Electric Actuators
The VALVCON I-Series is a compact, rugged, reliable electric actuator designed for quarter-turn valve and damper applications and is available in both NEMA 4/4X and NEMA 4/4X/7&9 configurations. I-Series actuators can be equipped with AS-i, Modbus, DeviceNet, or Foundation Fieldbus options for interface with the respective network.
VALVCON I-Series Network Capable Electric Actuator Features:
- Compact and lightweight
- Wide range of protocol options
- Easy to use electronics with clearly labeled terminals and coded option connectors
- High standard duty cycle
- Agency approvals are standard on most models
VALVCON I-Series Network Capable Electric Actuator Benefits:
- Long-term reliability
- No maintenance required
- Low cost of ownership
- Easy installation and set up
- Network scheme saves wiring
VALVCON I-Series Network Capable Electric Actuator Specifications:
TORQUE OUTPUT: 17-68 Nm, 150-600 lb-in, 12-50 lb-ft, Series I 113-339 Nm, 1000-3000 lb-in, 83-250 lb-ft, Series LI
DUTY CYCLE: 75% @ 40 C / 104 F (Duty Cycle is 55% for 3000 lb-in models)
OPERATION: Reversing
ENCLOSURE: NEMA 4/4X or NEMA 4/4X/7&9 (CSA (C US) Certification standard on most models)
TEMPERATURE RANGE: -40 to 66 C / -40 to 150 F
VOLTAGE: 115VAC, 230VAC
Download VALVCON I-Series Network Capable Electric Actuator Datasheet
Contact us at (855) 737-4714 to learn more or fill out our online form.
The VALVCON I-Series is a compact, rugged, reliable electric actuator designed for quarter-turn valve and damper applications and is available in both NEMA 4/4X and NEMA 4/4X/7&9 configurations. I-Series actuators can be equipped with AS-i, Modbus, DeviceNet, or Foundation Fieldbus options for interface with the respective network.
