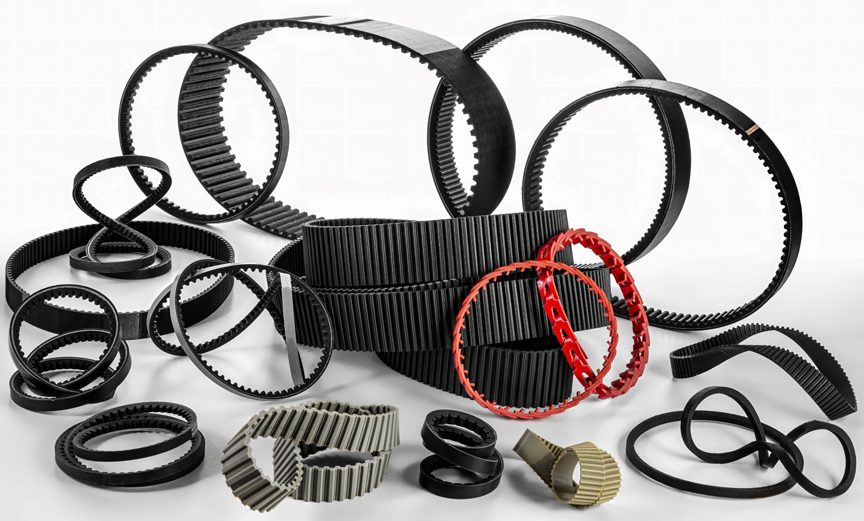

When applying a belt drive, especially in vertical applications that involve significant loads, understanding the design considerations and potential failure points is crucial. Here, we explore the dynamics, considerations, and best practices for deploying belt drives in such demanding situations.


The Core Challenge: Load and Acceleration

A vertical belt drive must be equipped to handle not just the weight of the payload but also the forces associated with rapid acceleration. In my experience, the belt itself often becomes the limiting factor in such configurations. Most belts used in industrial settings are reinforced with materials like Kevlar or steel, giving them substantial tensile strength. The ratings for these belts dictate their maximum load capacity and performance.

Take, for instance, a belt rated for 1,000 lbs of force. In these cases, maintaining proper tension is key for consistent repeatability. As tension increases, so does the system's repeatability. However, ensuring that acceleration forces don't exceed these limits is essential to preventing issues.

Common Issues: Belt Jumping vs. Catastrophic Failure

Over decades in the field, I’ve rarely witnessed a belt snapping under load. Instead, the more frequent challenge is belt teeth jumping—a scenario that can happen during an emergency stop or sudden, forceful movements. In cases of such tooth-jumping, diagnosing the problem is straightforward. For example, if a 10mm pitch belt slips, the displacement will align with that pitch, making it relatively easy to identify and troubleshoot.

Another critical factor is the belt-to-pulley contact ratio. For optimal performance, ensuring that a significant number of teeth remain in contact with the pulley is essential. A drive system with, say, 30 teeth on the pulley should ideally have at least half engaged at any given time to prevent slippage.

Comparing Profiles and Ratings

Various belt profiles offer unique benefits. One series, for instance, features a thicker tooth structure, which provides enhanced strength and reduces the likelihood of skipping. This difference in design helps ensure that even under high load and stress, the belt remains firmly engaged with the pulley.

In practice, I’ve found that when comparing two similar belts—say, one with 20 teeth in contact and another with 28—the one with more teeth engaged performs better under high stress. This holds true even if the tooth profile and pitch remain the same across different manufacturers.

Belt Profiles Across Brands

Some manufacturers, like Brands A and B, have established reputations for robust belt-driven systems. Brand A’s profile, for example, has proven reliable across numerous applications. While specific data such as maximum transmittable force might not always be provided, comparing the number of teeth engaged and the overall design can provide insight into a belt's capability.

Brand B often shares comprehensive data, including the number of teeth and maximum force ratings, allowing for an accurate assessment of performance. When such data isn't readily available from other suppliers, reviewing known specifications and extrapolating from practical experience becomes invaluable.

Final Thoughts: Leveraging Experience for Design Assurance

Designing with belts in vertical load applications requires a balance of theoretical understanding and hands-on expertise. Always consider the engagement, pitch, width, and materials when selecting or comparing belt drives. While published specs provide a solid foundation, practical insights gained over years of experience can guide fine-tuning and adaptation in unique or high-stress scenarios.

In essence, while total belt failure is rare, understanding and mitigating tooth skipping, ensuring proper tension, and optimizing belt-to-pulley engagement are keys to successful vertical belt drive application.
