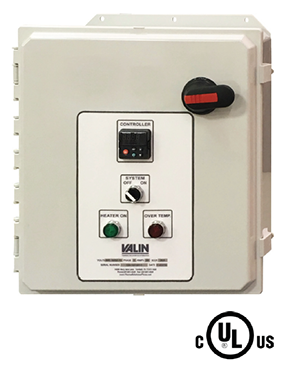

The VTS-100-S panel offers a single PID controller with a built-in over-temperature input to protect the heater. Since it contains a dedicated safety contactor, the Valin standard panel offers a true shut off, conserves space and alleviates the need to purchase a separate controller.
Standard Silicon Controlled Rectifier Panel VTS-100-S Features
Up to (6) circuits of control- Step down transformer with fusing
- Dedicated safety contactor (standard)
- Zero cross SCR power switching
- Disconnect switch (standard)
- Optional enclosure heater
- Customer interlock
- Enclosure Types
- Polycarbonate (Type 4X)
- 304SS (Type 4X)
- Single or three phase
- Controls up to 160 kW
- 120/240/480 VAC fused control power transformer
Example Ordering Code
VTS-100-S-1111212223
Ordering Information
Download Standard Silicon Controlled Rectifier Panel VTS-100-S Datasheet
Learn more about Valin's UL Control Panels.
Partner with Valin for all of your control panel needs. Contact us today at (855) 737-4718 or fill out our online form to learn more.
Short description
The VTS-100-S panel offers a single PID controller with a built-in over-temperature input to protect the heater.
