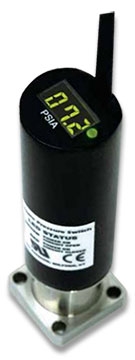

Designed for semiconductor fabrication and OEM process equipment, Staset combines the safety of a tamper proof switch, the output of a transducer and the convenience of a gauge in a reliable, cost effective 1 1/8 package.
Available with a backlit rotating display, choice of analog output, LED indication of switch contact state, Staset is an ideal choice for accurate long-term protection of equipment and processes.
Staset eliminates potential leak paths by reducing the number of fluid connections. Threshold protection is achieved with a tamper proof switch and deadband that can be factory set from 1% to 98% of full scale.
Staset EGN Series Features:
- Combines switch, gauge, and transducer in one unit
- Tamper proof design
- Status LED
- Backlit display with 180 CW 90CCW rotation
- RoHS Compliant
Staset EGN Series Specifications:
| Medium | Compatible with 316L CRES |
| Type | Factory Set |
| Full Scale Range | 0 100 PSIG, 0-300 PSIG |
| Proof Pressure | 2x range |
| Burst Pressure | PSIG 5x range |
| Deadband | 1% to 98% F.S. |
| Switching Response | 30 ms Max. |
| Switching Output | 0.25A AC/DC 0.4A peak, 50V |
| Switch Repeatability | 0.25% F.S. |
| Input Power | 9 to 30VDC |
| Analog Outputs | 0 5 VDC, 0.2-5.2VDC, 4 20 mA |
| Status LED | open / close Green / Red |
| Operating Temp. Range | 0 to 50C |
| Display Accuracy | 1% F.S., 0 to 50C |
| Min. Operating Life | 5 Million cycles |
| Approvals | UL, CE |
| Warranty | 60 Months |
| Media Connections | 1/4 male end seal 1/4 flow through male or female. 1.125 C seal |
Download Staset EGN Series Brochure
