Barksdale's Series UNS-1000 Level Float Switches offers a level control solution that is fully customizable to the exact needs of your application. Available in lengths up to 40", the UNS-1000 Multi-Level Float Switches can be configured with up to five floats, each with its own individual switch point. A variety of mounting options and materials are available, ensuring compatibility with your vessel. Standard construction materials include stainless steel and brass. Level Floats are available in stainless steel and Buna-N. Alternative materials may be available upon request. Level Float Switches may be configured either as one common circuit (Group 1 or 2) or as independent circuits (Group 3 or 4), with SPST or SPDT reed switches. For applications requiring multiple setpoints with pressures below 220 psi, the Series UNS-1000 is the level switch to choose.
Features

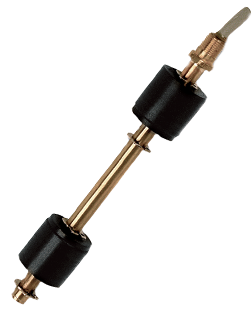

Series UNS-1000 Multi Level Float Switch - 5 Point Features
- Fully customizable
- Up to 5 independent switch points
- Reversible switch logic
- Suitable for high viscosity liquids
- Optional integral temperature switch
- Hermetically sealed reed switches
- Available in Brass or Stainless Steel Multiple Mounting and Electrical Connection Options
Specifications
Series UNS-1000 Multi Level Float Switch - 5 Point Specifications
| Specification | Description |
|---|---|
| Max. Operating Pressure | 220 psig (15 bar), NBR (BUNA) and Stainless Steel (SS) float |
| Minimum Specific Gravity | NBR (BUNA): 0.57 g/cm3; SS: 0.71 g/cm3 |
| Mounting Position | Vertical, ±30°, through top or bottom |
| Protection Class | IP65 for ST-, KL-, and PG-design; IP67, IP68 on request; IP54 for K-design |
| Operating Temperature | +14 °F to +221 °F (-10 °C to +105 °C), PVC cable |
| Special Design Options (On Request) | DR – Damping tube HT – High temperature silicone cable (-40 °F to +302 °F / -40 °C to +150 °C) U – Mounting location through bottom PT100 – Pt100 element VV – Vertical adjustment Exi – ATEX approval EEx ia |
| Contact Mode | Normally Open (NO) or Normally Closed (NC) defined on the basis of an empty tank and for installation through the top |
| Weight | Dependent on length and design |
Applications
Series UNS-1000 Multi Level Float Switch - 5 Point Applications
- Sump tanks
- Hydraulic power units
- Storage tanks
- Solvent recovery systems
- Lube oil console systems
- Marine applications
Q & A
Series UNS-1000 Multi Level Float Switch - 5 Point Q & A
The switch operates effectively within a temperature range of -10°C to +105°C (14°F to 221°F), accommodating various industrial applications.
Downloads
Download Barksdale Series UNS-1000 Multi Level Float Switch - 5 Point Datasheet
