PAX units are flexible, low voltage actuators that are designed for use in remote, explosionproof locations. They are ideal for midstream and downstream systems that demand precision and reliability, such as within natural gas. Many PAX actuators have been supplied to gas utility companies at natural gas pressure reducing stations to provide automation. This eliminates expensive manual field operation. PAX technology provides simple and rapid compliance to emissions guidelines. They are also suitable for use within water distribution automation networks.
The wider PAX range is made up of linear actuators and motorised regulators. Common applications include pump stroke control, valve control, test equipment and the automation of mechanical spring-loaded pressure regulators.
The AC power variant allows for longer cable runs without degradation of the power supply.
Features

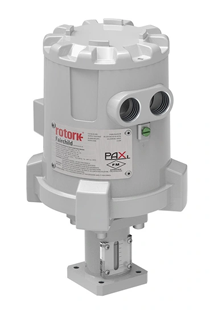

PAXL Features
- IP rating Type 4X/Type 6P/IP66/IP68 (7 meters for 72 hours)
- FM, CSA, CCC/NEPSI and ATEX explosionproof certified
- Wide ambient temperature range of -40 to +80 °C (-40 to +176 °F)
- Two power options: AC and DC
- Pressure ranges of 0-0.5 psig to 0-3,000 psig
- Linear stroke: 25 mm (1 “)
- Max force: 2,890 N (650 lbf)
- Max linear speed: 60 mm (2.36 “)/minute
- Low power consumption: less than 1 watt during standby, ideal for installations in isolated locations
- Optional isolated 4-20 mA position feedback
- Overall stroke and alarm limits are defined by end user
Benefits
PAXL Benefits
- Safe, predictable and reliable operation
- Capable of rapid start-stop with high running torque enables use in open loop control and automated systems
- Designed for use in hazardous or harsh environments
- User selectable setting of minimum and maximum pressure values
Specifications
PAXL Specifications
| Specification | PAXL |
|---|---|
| Electrical Supply | 11–30 VDC (12–24 VDC nominal) 95–250 VAC, 47–63 Hz (110–240 VAC, 50–60 Hz nominal) |
| Control Methods | Analogue Control 4–20 mA Pulse Control: switch closure (2) UP & DN, 4–30 VDC loop isolated from supply Modbus Communication: 2-wire RS-485, Modbus RTU |
| Thrust Rod Style | Linear non-rotating rod – push and pull action, M8 x 1.25 mm female thread coupling |
| Maximum Stroke | 25 mm (1") |
| Mounting Interface | ISO 5211 – F07 |
| Accuracy | 0.5% of maximum stroke |
| Maximum Force | 2,890 N (650 lbf) |
| Maximum Linear Speed | 60 mm (2.36")/minute **May slow at lower supply voltage to reach max force |
| Operating Temperature Rating | -40 to +80 °C (-40 to +176 °F) intermittent duty -40 to +70 °C (-40 to +158 °F) continuous duty |
| Analogue Feedback | 4–20 mA, isolated from supply |
| EMC Testing | IEC/EN 61326-1, FCC 47 CFR Part 15 |
| Hazardous Area Ratings | FM, CSA, ATEX, IECEx, UKEX Class I Div I Groups ABCD T6…T5 Type 4X/6P, IP66/IP68 |
| Power Supply Sizing | 12 VDC: 2 A recommended 24 VDC: 1 A recommended 95–250 VAC: 30 W max |
Q & A
PAXL Q & A
Yes. The PAXL can include optional features such as isolated 4-20 mA position feedback. In analog or pulse control modes, it can integrate with automation systems for positioning of the thrust rod.
Downloads
Download Rotork Fairchild PAX Range Linear Electric Actuators Brochure
Contact us at (855) 737-4714 to learn more or fill out our online form.
