M Series Mechanical Register Flow Meter from Macnaught

M Series Mechanical Register Flow Meter from MacnaughtMacnaught M Series Mechanical Register Flow Meters are non-powered industrial grade mechanical display totalizing flow devices. Well suited for registering totals in most fluid applications. Designed for clean process fluid, this meter is not for measuring air or liquids laden with solids.

This Macnaught meter class has decades of industrial experience with thousands in service, many operating in perfect condition for over 30 years.

Features

M Series Mechanical Register Flow Meter Features

  • 1% accuracy with 0.03% repeatability of flow
  • Stocked sizes: ?”, 1”, 1.5” and 2”
  • Designed for precise volumetric clean process fluid totalizing measurement
  • No flow conditioning required – put the meter where you need it
  • Large stock of meter and display inventory including Hazard Classification meters
  • Heavy duty industrial grade design
  • Compact size
  • Suitable for low and high viscosity fluids

Specifications

M Series Mechanical Register Flow Meter Specifications

  • All bodies are cast aluminum or stainless steel.
  • All stock connections are FNPT. Flanges options available on 1”, 1.5”, and 2” models.
  • All Macnaught USA mechanical meters use the Standard Mechanical Display.
  • Macnaught mechanical register meters cannot exceed 176°F.

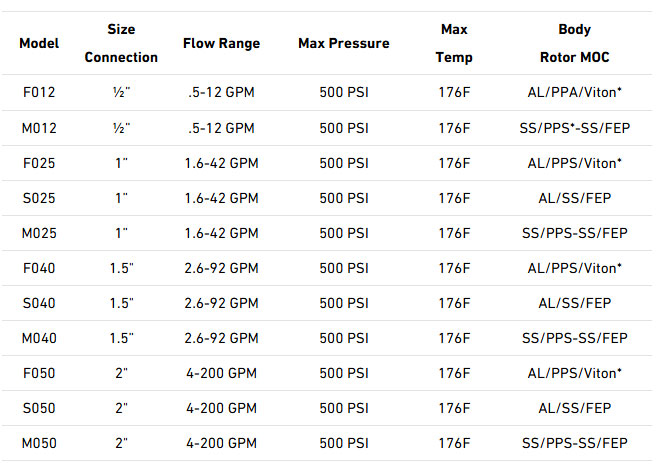

Macnaught M Series Mechanical Register Flow Meter Specifications

Applications

M Series Mechanical Register Flow Meter Applications

Flow Totalizing Applications Well Suited for Macnaught Oval Gear Flow Meters

  • Test Stands
  • Ethanol Blends
  • Solvent Manufacturing, Blending, Dispensing
  • Blending and Dispensing
    • Diesel Fuel Additive Blending
    • Polyurethane Foam Ratio Blending
    • Ink Blending
    • Additive Injection & Blending
    • Lubricant Blending & Dispensing
    • Agriculture Chemical Blending & Dispensing
  • Production
    • Bio Diesel Blending & Production
    • Epoxy / Glue Production
  • Measurement
    • Glycols Process Measurement
    • Hydraulic Fluid Measurement
    • High Viscosity Fluid Measurement
    • Heating Oil Measurement
    • DI and General Water Loop Measurement
    • Boiler Fuel Measurement
    • Bunker & Vessel Fuel Measurement
    • Acids & Bases Measurement
    • Polymer Production & Measurement
    • Basic Fuel Measurement
    • Advanced Fuel Measurement
  • Manufacturing
    • Sealants & Adhesive Manufacturing
    • Paint & Coating Manufacturing

Q & A

Q&A Section with Expand/Collapse Icons

M Series Mechanical Register Flow Meter Q & A

+ What flow rates and pipe sizes can the M Series handle?
The Macnaught M Series Mechanical Register Flow Meters cover a broad range of flow rates, typically from 1 to 300 GPM (4 to 1,100 LPM), depending on the model. They are available for a range of pipe sizes, generally from ?” to 4”. Please refer to specific model datasheets for exact ranges.

+ What fluids can be measured with the M Series meters?
The M Series meters are compatible with a wide variety of clean, non-corrosive fluids including oils, diesel fuel, gasoline, kerosene, and other petroleum-based liquids. They can also handle some water-based fluids, provided they are compatible with the meter’s construction materials.
+ What is the accuracy and repeatability of these meters?
M Series flow meters offer an accuracy of ±1% of reading, with excellent repeatability of ±0.03%. These specifications help ensure consistent, reliable measurements in the field.

+ What materials are the meters constructed from?
The M Series meters are built with robust aluminum bodies, high-quality seals, and stainless-steel internal components to provide long service life and resistance to wear. The materials were selected to handle petroleum-based fluids and similar compatible liquids.


+ Are there options for pulse outputs or electronic registers?
Yes, in addition to the mechanical register, M Series meters can be fitted with optional pulse output modules and electronic register kits. These accessories make it easy to integrate the meter into electronic control or batching systems.





Downloads

Download Macnaught M Series Model 012 (1/2") Mechanical Flow Meter Instruction Manual

Download Macnaught M Series Model 025 (1") Mechanical Flow Meter Instruction Manual

Download Macnaught M Series Model 040 (1.5") Mechanical Flow Meter Instruction Manual

Download Macnaught M Series Model 050 (2") Mechanical Flow Meter Instruction Manual
