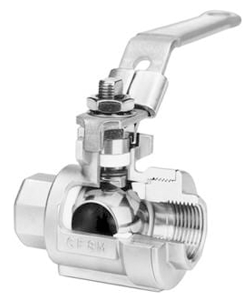

Thread end connection resilient seated 2 piece ball valve.
The 6F ball valve is a member of the Jamesbury? Value-Line Series which offers the benefits of proven quality and design performance with exceptional economy not previously available in high-performance ball valves. Its full-bore configuration and high-pressure rating (1000 psi for 3/4" – 2" (DN 20 – 50), 800 psi for 3" (DN 80) make it an ideal choice for the majority of applications where tight shut-off is required.
Features
Jamesbury? Series 6F Full Port Ball Valve Features:
- Robust engineering design
- Manual operation
- High quality
Benefits
Jamesbury? Series 6F Full Port Ball Valve Benefits:
- Long service life
- Bubble tight shut off
Specifications
Jamesbury? Series 6F Full Port Ball Valve Specifications:
| Specification | Details |
|---|---|
| Size range | 1/2” – 3” (DN 15 – 80) full port |
| Temperature range | 260 °C / 500 °F |
| Pressure rating | 69 bar / 1000 psi |
| Materials | Carbon steel, stainless steel body materials |
Q & A
Jamesbury? Series 6F Full Port Ball Valve Q & A
+ What is the connection style of the 6F valve?
It is a thread-end connection, 2-piece design, with a resilient seated full port construction.
+ What is the size range available?
Sizes from ?″ to 3″ (DN 15 to DN 80), full port.
+ What is the maximum temperature rating?
Up to 260 °C (500 °F).
+ What materials are used for the valve body?
Carbon steel and stainless steel body materials.
+ What kind of sealing / shutoff reliability does it offer?
It provides bubble-tight shutoff in its resilient-seated design.
Downloads
Download Jamesbury Series 6F Full Port Ball Valve Datasheet
Contact us at (855) 737-4714 to learn more or fill out our online form.
