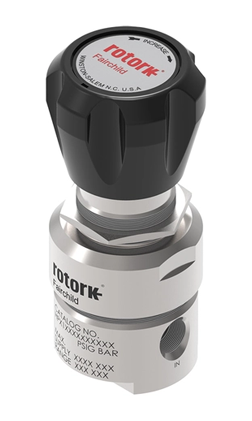

The Rotork Fairchild HPD is a High Pressure Regulator designed for applications that have high supply pressures and require a much lower output pressure. It is constructed of rugged 316L Stainless Steel for corrosion resistance and durability. The HPD is available in a 2 or 4 port configuration.
HPD Style Regulators
This model features standard Inconel diaphragms to eliminate drift and provide long term accuracy and stability. With 2 or 4 ports and standard NPT, BSPT or SAE style port threads, five available output ranges allow selection from 0-25 psi to 0-500 psi.
Features
HPD High Pressure Regulator Features
- Standard X-750 inconel diaphragm ? Three seat material choices (PEEK, CTFE, Vespel)
- Tamper proof option
- Five output pressure ranges from 0-25 psi, 0-1.7 BAR, 0-170 kPa, up to 5-500 psi, 0.35-35 BAR, 35-3500 kPa
- Supply valve Cv of 0.06
- Panel mounting option
- Allows for more through put of gas
- Helps to prevent corrosion and is compatible with most gases
- Offers a variety of choices for compatibility and temperature ranges
- New patented valve and valve seat to prevent leakage
Specifications
HPD High Pressure Regulator Specifications
| Category | Specification |
|---|---|
| Regulator Type | Diaphragm-operated |
| Body Material | 316L Stainless Steel |
| Diaphragm Material | Inconel Alloy X-750 |
| Supply Pressure (Max) | 6000 psig (414 bar) |
| Output Pressure Ranges | 0–25 psi, 0–50 psi, 1–100 psi, 2–250 psi, 5–500 psi |
| Supply Valve Cv | 0.06 or 0.25 |
| Supply Pressure Effect | 0.6 psig per 100 psig supply change |
| Ambient Temperature Range | -40 °F to +500 °F (-40 °C to +260 °C) |
| Seat Material Options | CTFE, PEEK, Vespel |
| Seat Temperature/Pressure Ratings |
|
| Port Sizes | 1/4” |
| Port Thread Options | NPTF, BSPT, SAE |
| Port Configurations | 2-port or 4-port |
| Actuator Options | Knob or Tamper-proof |
| Relief Options | Relieving or Non-relieving |
| Mounting Options | None or Panel mount |
Q & A
HPD High Pressure Regulator Q & A
+What is the maximum supply pressure for the HPD regulator?
The HPD can handle up to 6,000 psig (414 bar) on its inlet, depending on the seat material.
+What output (regulated) pressure ranges are available?
There are five output ranges: 0–25 psi, 0–50 psi, 1–100 psi, 2–250 psi, and 5–500 psi.
+What materials are used in the HPD’s construction?
The body and housing are 316L stainless steel. The supply and internal valves are 316L stainless steel. The diaphragm is an Inconel Alloy X-750.
+What seat materials are available, and how do they affect performance?
The HPD offers three seat materials: PEEK, CTFE, and Vespel. Each has different maximum temperature and pressure ratings: for instance, PEEK supports up to 6,000 psig at 175°F.
+What is the temperature range for the HPD?
The ambient temperature range is –40 °F to +500 °F (–40 °C to +260 °C), though actual limits depend on the seat material.
Downloads
Download Rotork Fairchild HPD High Pressure Regulator Brochure
Contact us at (855) 737-4714 to learn more or fill out our online form.
