Macnaught FCM Flow Meters are special-purpose flow devices designed to provide .1% Accuracy in Fuel Consumption Meter Applications.

FCM Meters thrive in harsh environments and work very well in heavy vibration, swirling dust, flying mud, heavy rain or other excessive mobile or stationary conditions. This meter class works with clean filtered fluids only and does not measure gas or liquids with solids present.

The unique magnetic attachment method does away with mechanical fastening and improves substrate mating while significantly reducing connection stress.

Macnaught's built-in temperature sensor allows for Diesel Fuel temperature compensation capabilities for maximum accuracy purposes.

Two flow ranges are offered that cover the majority of diesel engine models:

• MX12FCM .5-8 GPM
• MX25FCM 1.6-9.5 GPM

Minimal Pressure Drop, typically .5 PSI to 2 PSI

FCM High Accuracy Diesel Fuel Flow Meters Specifications:

• Very high accuracy of 0.1% of flow
• Innovative Magnet Mounting design, no mechanical attachment required
• Two sizes covering small to large Engine Fuel Measurement
• No Flow conditioning required, perfect for tight installs

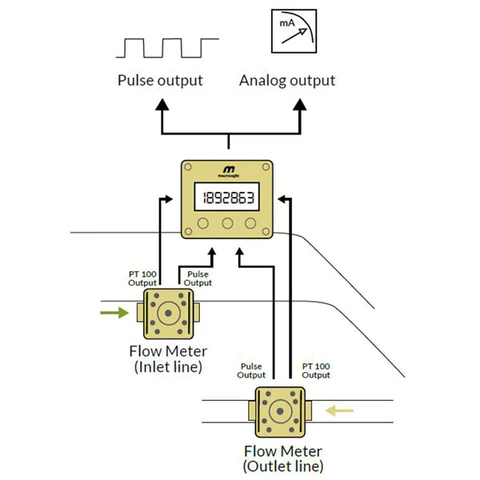

• Optional Fuel Computer provides net fuel consumption with analog and pulse outputs

FCM High Accuracy Diesel Fuel Flow Meters Applications:

• Fracking Engines
• Drilling Platforms Generator Fuel Measurement
• Mining Trucks
• Logging Equipment
• Gen-Set Fleets

Call us today at (855) 737-4714 to learn more or fill out our online form and someone will get back to you.
