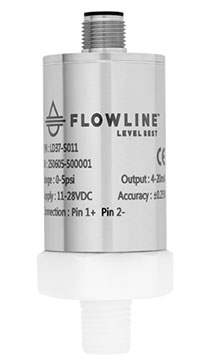

DeltaSpan? LD37 External Anti-Corrosion Pressure Liquid Level Sensor Transmitter from Flowline

DeltaSpan? LD37 External Anti-Corrosion Pressure Liquid Level Sensor Transmitter from FlowlineThe LD37 general purpose anti-corrosion external mount pressure level transmitter provides continuous liquid level measurement up to 11.55’ (3.4m) of water column with a 4-20 mA signal output. Offered in two termination types, select the -S_01 model for cable termination or the -S_11 model for M12 connector termination. The LD37 pressure level sensor is well suited for clean liquids compatible with PTFE such as acidic and caustic chemicals.

External Mount

The externally mounted pressure sensor provides a simple, low-cost, level measurement solution for metal tanks, and is easily installed via a 1/4” tee or tap fitting located in the tank’s drain or inspection port.

Features

DeltaSpan? LD37 External Anti-Corrosion Pressure Liquid Level Sensor Transmitter Features:

  • Rugged PTFE transducer and threaded fitting mount with 316 SS body
  • Offered in cable or connector termination for flexible installation
  • Integral surge protection for lightning strikes or power surges
  • Automatic temperature compensation for reliable measurement

Specifications

DeltaSpan? LD37 External Anti-Corrosion Pressure Liquid Level Sensor Transmitter Specifications:

SpecificationDescription
Range0 to 5 psi (0.34 bar) or 0 to 11.55’ (0 to 3.4m) wc
Accuracy± 0.25% of full scale
ConfigurationNone, fixed span
Supply Voltage11–28 VDC
Loop Resistance900 Ohms max @ 30 VDC
Signal Output4–20 mA, two-wire
Process TemperatureF: 14o to 176o; C: -10o to 80o
Temperature CompensationAutomatic
Burst Pressure2 × full span
Response Time50 ms
Process Mount?” NPT
Wetted MaterialPTFE (Polytetrafluoroethylene)
Sensor Material316 Stainless Steel
Enclosure RatingNEMA 4X (IP65)
Termination-S001: Cable; -S011: M12 connector (male)
Cable Type-S001: 2-conductor, shielded
Cable Material-S001: PUR (Polyurethane)
Cable Length-S001: 9’ (2.7m)
ClassificationGeneral purpose
ComplianceCE, RoHS

Compatible Products

DeltaSpan? LD37 External Anti-Corrosion Pressure Liquid Level Sensor Transmitter Compatible Products:

LI23 Series Flowline

DATA-LOOP? LEVEL INDICATOR
The general purpose loop powered tank or silo level indicator displays engineering units connected in series with one 4-20 mA continuous level transmitter, and is available with two optional relays and an isolated 4-20 mA repeater. Select this panel mount indicator for use with general purpose two-wire level sensors.

LI55 Series Flowline

DATA-VIEW? LEVEL CONTROLLER
The general purpose AC or DC powered tank or silo level controller displays engineering units with one 4-20 mA level transmitter and is offered in three configurations with optional two or four programmable relays and an isolated 4-20 mA repeater. Each relay can be configured on a single set point as a high or low level alarm, or latched on two set points for automatic fill or empty control in simplex or duplex modes. Select this panel mount controller for use with general purpose two or three-wire level sensors.

Q & A

Q&A Section with Expand/Collapse Icons

DeltaSpan? LD37 External Anti-Corrosion Pressure Liquid Level Sensor Transmitter Compatible Q & A

+ What is the measuring range of the LD37 sensor?
The sensor measures from 0 to 5 psi (0.34 bar), which corresponds to 0 to 11.55 ft (0 to 3.4 m) water column (wc).
+ How accurate is the LD37 transmitter?
It offers an accuracy of ± 0.25% of full scale.
+ What output signal does it provide?
It provides a 4–20 mA, two-wire signal output.
+ What supply voltage is required?
It requires 11 to 28 VDC supply.
+ What is its response time?

The response time is 50 ms.

Downloads

Download Flowline DeltaSpan? LD37 External Anti-Corrosion Pressure Liquid Level Sensor Transmitter Datasheet
