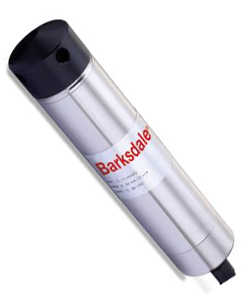

The level transmitter BLP2 is designed for continuous level measurement in water or wastewater applications.
Two versions are available with ceramic sensor or with stainless steel sensor. The accuracy, as per IEC 600770, is 0.5% FSO for ceramic and 0.1% / 0.35% / 0.5% FSO for stainless steel. Suitable for all fluids which are compatible with media wetted materials. Different cable and elastomer materials can be offered according to the customer-specific operating conditions.
Features
BLP2 Level Sensor Probe for Continuous Level Measurement Features:
- Nominal pressure
- from 0 ... 4 mH2O up to 0 ... 250 mH2O (ceramic)
- from 0 ... 1 mH2O up to 0 ... 250 mH2O (stainless steel)
- Output signals
- 2-wire: 4 ... 20 mA
- 3-wire: 0 ... 20 mA / 0 ... 10 V
- Diameter 27 mm (ceramic), 26.5 mm (stainless steel)
- Good linearity
- Good long term stability
Applications
BLP2 Level Sensor Probe for Continuous Level Measurement Applications:
- Ballast containers
- Fuel and oil tanks
- Service and waste water tanks
Q & A
BLP2 Level Sensor Probe for Continuous Level Measurement Q & A
You choose the sensor version (ceramic or stainless steel), a suitable pressure / level range (in mH?O), and the desired output type (4–20 mA or 0–10 V). You may also specify appropriate cable and elastomer materials based on the media and operating conditions.
Downloads
Download Barksdale BLP2 Level Sensor Probe for Continuous Level Measurement Datasheet
Contact us at (855) 737-4714 to learn more or fill out our online form.
