Believe it: A built-in controller at this size resolves all kinds of small air cylinder problems! Select from three types according to the application: Slider, Rod, and Table. Speed can be set with numbers from 1% (low speed) to 100% (high speed), enabling the same motion regardless of the operator.

Design is easy with all the necessary components already assembled. The modular structure makes replacement easy.

Ultra-Mini ELECYLINDER? Features

• ELECYLINDER? speed can be set easily at any value needed, from low speed to high-speed operation.
• Speed can be set with numbers from 1% (low speed) to 100% (high speed), enabling the same motion regardless of the operator.
• The ELECYLINDER? is electric and thus airless. What's more, it is an all-in-one machine with a controller and guide built-in.
• Design is easy with all the necessary components already assembled.
• The Ultra-Mini ELECYLINDER? has a life of five million cycles. What's more, maintenance is simple.
• Modular structure makes replacement easy.

Ultra-Mini ELECYLINDER? Functions

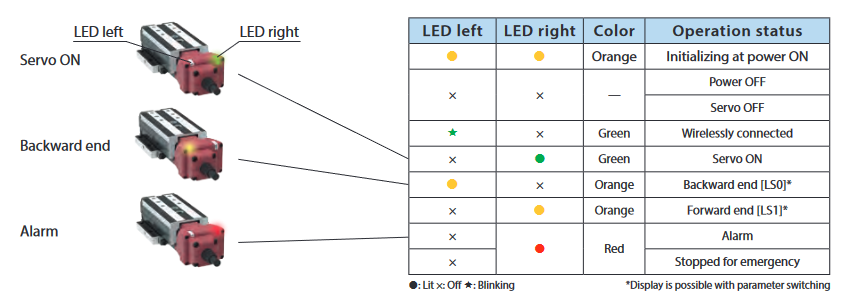

• Status shown by body LED: LEDs on the body clarify the operation status. With forward end/backward end display added, the status is clear at a glance.

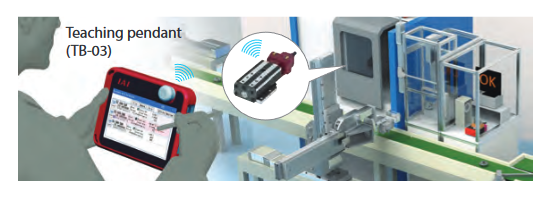

• Simple operation with wireless connection: The teaching pendant (TB-03) can be connected wirelessly to an ELECYLINDER? within a 5m radius. This enables status confirmation, position/speed setting, test runs, and so on.

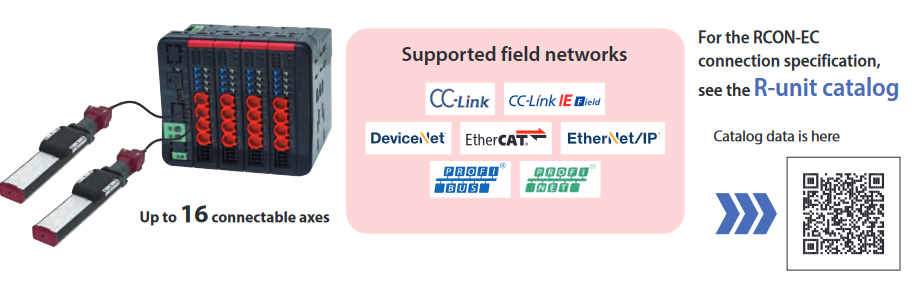

• Multi-axis control and network connection with RCON-EC connection specification:  Use of the ELECYLINDER? dedicated drive unit REC enables connection with up to 16 axes, reducing wiring and saving control panel space.






Ultra-Mini ELECYLINDER? Video

  Download IAI Ultra-Mini ELECYLINDER? Brochure

Talk to one of our experts today at (855) 737-4716, or fill out our online form to learn more.
