The SFLA series safety light curtains offer various detection type models (finger/hand/hand-body detection) and safety functions for diverse applications. The light curtains feature stable operation in diverse conditions including low temperature, oil, high pressure. The dedicated software atLightCurtain allows real-time status monitoring user settings such as automatic muting/blanking area functions.
SFLA Series Safety Light Curtains Features
- International safety standard and regulation compliance
- Type 4 ESPE (AOPD), SIL3, SIL CL3, Category 4, PL e, CE, UL Listed, S-Mark, KCs (industrial robot protection device)
- Available in 3 detection type models (finger, hand, hand-body detection) and various protection height models
- Various safety-related functions & self-diagnosis functions
- Various status readings with 7-segment display and status indicators
- Easy beam adjustment with top and bottom beam indicators
- Upper OSSD indicator to check operation status and muting status (separate muting lamp not required)
- 4 non-safety outputs for various applications (2 AUX, 2 lamp)
- Stable operation in diverse conditions including low temperature, oil, high-pressure water
- Protection rating: IP65, IP67 (IEC standard), IP67G (JEM standard), IP69K (DIN standard)
- Ambient temperature: -30 to 60
- Additional functions and configuration available with dedicated software (atLightCurtain)
Various Models Available for Diverse Applications
Finger detection (?14 mm), hand detection (?20 mm), hand-body detection (?30 mm) models available for application in diverse user environments.

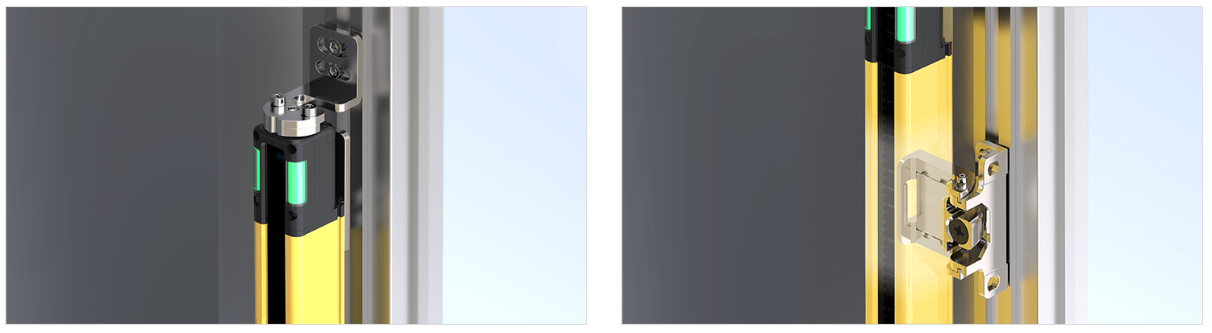

Easy Installation
Standard and adjustable brackets are available and can be installed on the top, bottom, or middle of the units. One-touch method offers easy installation on the middle of the units. The adjustable brackets can be adjusted by 15 degrees to right or left for easier installation.

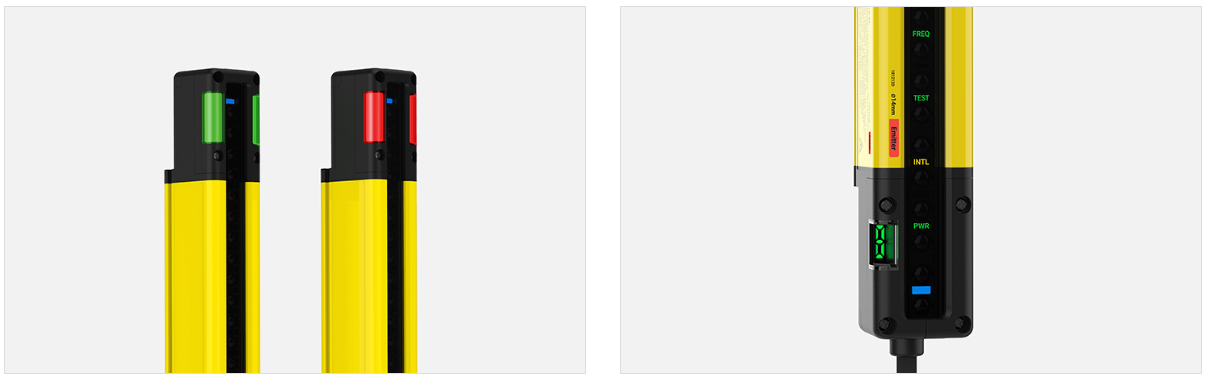

High Visibility with Operation Display/Indicator
Users can check light received status during installation with the beam indicator on the top and bottom of the unit. The units feature 7-segment display and LED indicators for easy status readings.

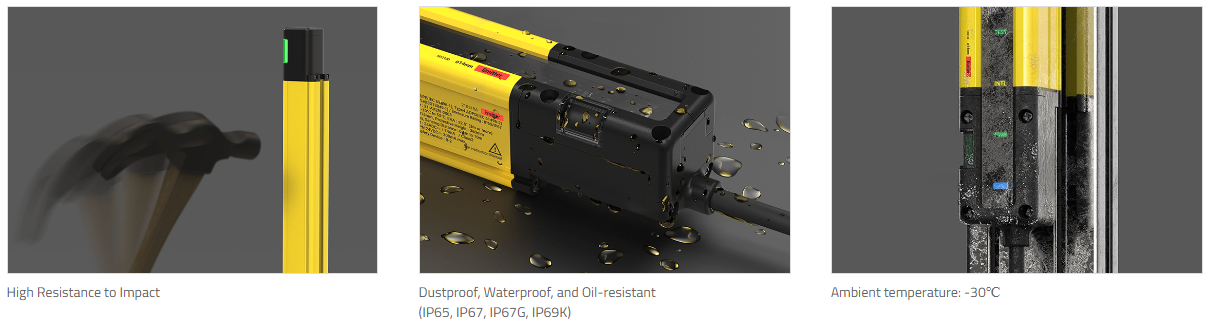

Slim Size, High Durability, and Environmental Resistance
The units feature high durability and resistance to impact. IP65, IP67, IP67G(JEM), and IP69K protection rating allow the units to be installed in diverse conditions including low temperature, oil, and high-pressure water.
SFLA Series Safety Light Curtain Applications:
- Product Transport Line
Download SFLA Series Safety Light Curtains Datasheet
