Power Communication Module from SolaHD
Power Communication Module from SolaHD
The digital transformation journey begins by leveraging the SolaHD Communication Modules (SCM) communication capability for increased efficiency and predictive maintenance. The SCM provides network connectivity support for one or two SDN-D Series high performance power supplies over popular industrial protocols. This allows key diagnostic data, alarms and operating parameters to be communicated to supervisory systems.
- Each DIN rail mounted SCM module can provide network connection to one or two SDN-D power supplies.
- Two 8 inch I2C connection cables are included with each SCM module for direct connection to the power supplies. The SCM module must be located close enough to the SDN-D power supplies to be connected with the I2C connection cables.

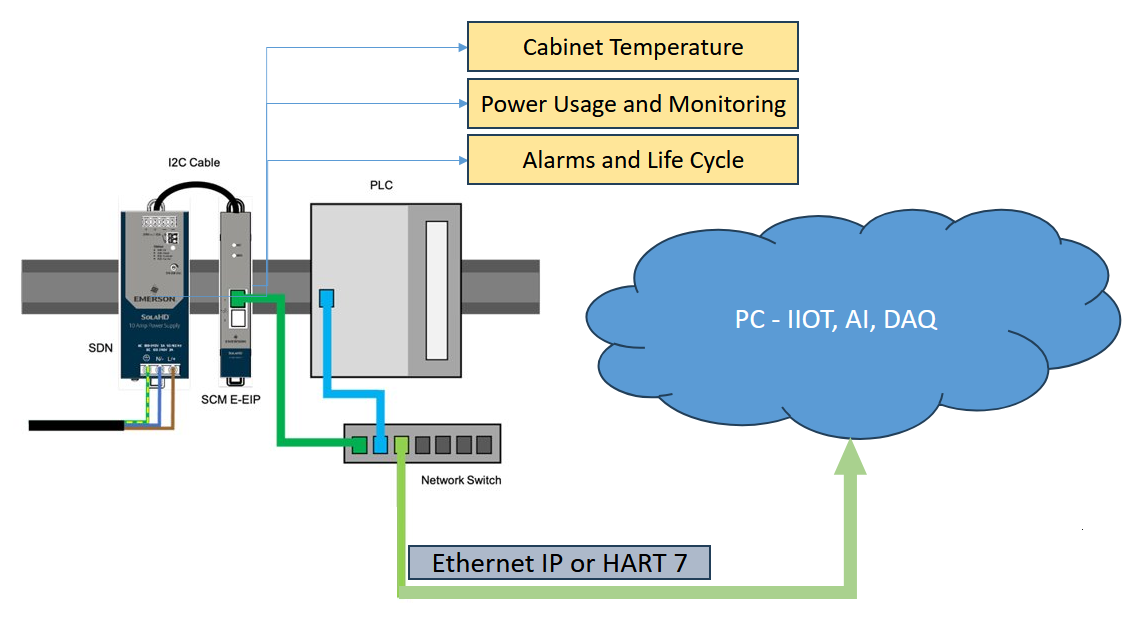

Single Connection Example
Single Connection Example
Single Connection Example

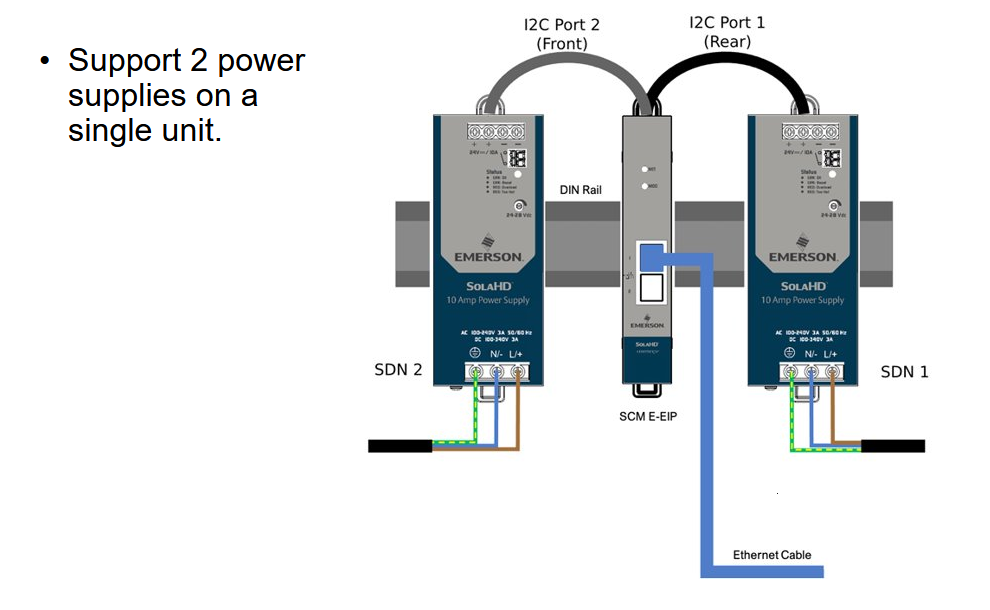

Dual Connection Example
Dual Connection Example
Dual Connection Example

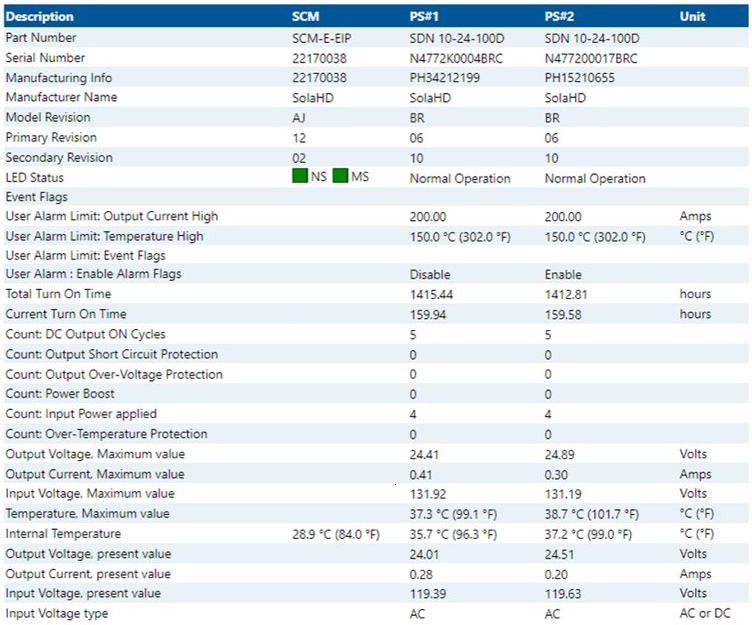

Example Data
example data
example data
Power Communication Module Features
- Key diagnostic data, alarms, and operating parameters to be communicated to supervisory systems.
- Monitoring the health and performance of devices ensures greater reliability to reduce unscheduled downtime due to equipment failures, lower maintenance costs and extend equipment life.
- Monitor important power supply parameters to identify an abnormal condition.
- Monitor power supply current and temperature and set alarm threshold.
- Monitor power supply total turn on time to indicate end of useful life.
- Monitor SCM temperature as a proxy for internal enclosure temperature.
- Monitor power supply events, event counts, and the event logs (only SCM-E-EIP).
Download SolaHD? Power Communication Module Datasheet
Talk to one of our experts today at (855) 737-4716, or fill out our online form to learn more.
Short description
Provides network connectivity support for one or two SDN-D Series.
