Mini Cylinder RCD Features:

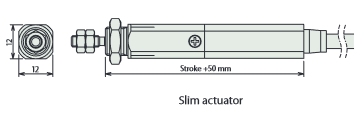

Ultra-compact size makes it a good replacement for compact air cylinders.
Ultra-compact size has been achieved, with a cross-section of only 12 mm and a body length as short as 60 mm. The Mini Cylinder RCD is small enough to replace compact air cylinders used for short-stroke travel, pressing, hoisting, etc.
High-speed performance with maximum acceleration/deceleration of 1 G and maximum speed of 300 mm/s
The Mini Cylinder RCD incorporates a newly developed brushless DC motor that generates sufficient torque despite its compact size. Its high-speed performance with maximum acceleration/deceleration of 1 G and maximum speed of 300 mm/s is highly effective in reducing cycle time in a variety of systems.

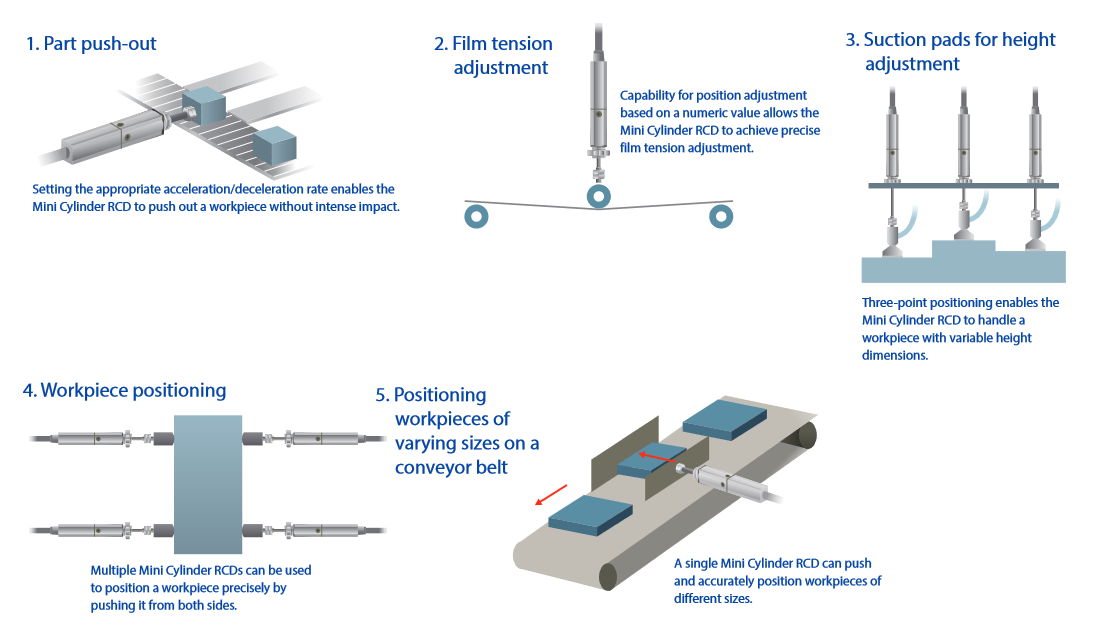

Mini Cylinder RCD Application Examples:
Mini Cylinder RCD Specifications:
- Drive Method: Ball screw, ?3mm
- Positioning Repeatability: ±0.05mm
- Lost Motion: 0.2mm or less
- Encoder Resolution: 480 pulses/rev
- Base: Material: Aluminum, white alumite treated
- Rod Allowable Static Moment: 0.02 N?m
- Rod Non-rotation Precision: ±3 deg
- Ambient Operating Temperature/Humidity: 0 to 40°C, 85% RH max. (Non-condensing)
- Service Life: 10 million cycles (for horizontal and vertical)
Download IAI Mini Cylinder RCD Brochure
Talk to one of our automation experts today at (855) 737-4716, or fill out our online form to learn more.
With a profile less than 1/2" square, it delivers precision even in tight spots.
