IAI's large single-axis robot types IS(P)B-WXM and IS(P)B-WXMX with a 400kg horizontal payload are available now! Mid support suppresses deflection of the ball screw, making long-stroke and high-speed operations possible.

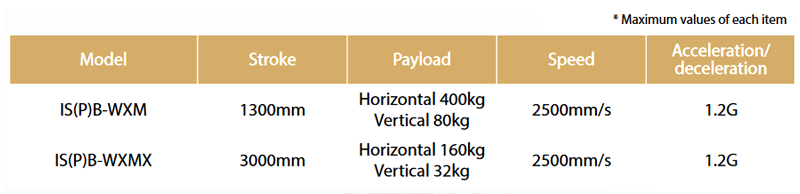

- Max stroke 3000 mm. - Maximum speed 2500 mm/s.
- Max acceleration/deceleration 1.2G.

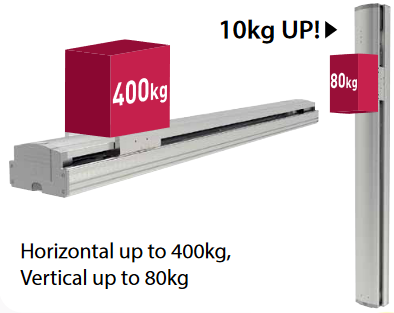

- Max payload capacity: Horizontal 400kg, Vertical 80kg.
Large Single-Axis Robot IS(P)B-WXM and IS(P)B-WXMX Overview
- More powerful and easy operation
- Suitable for high-speed and high-payload transfer
- The large single-axis robot has further evolved

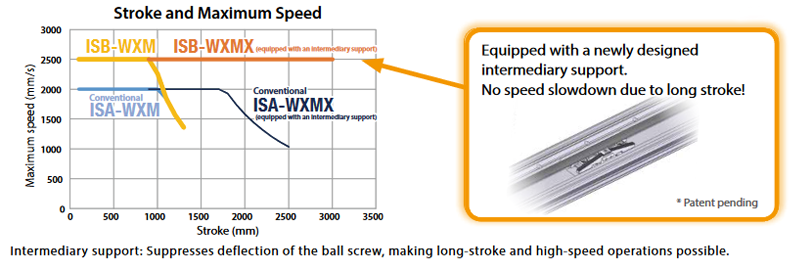

- Increased Speed: No speed slowdown by stroke length
- Higher Performance: High payload capacity

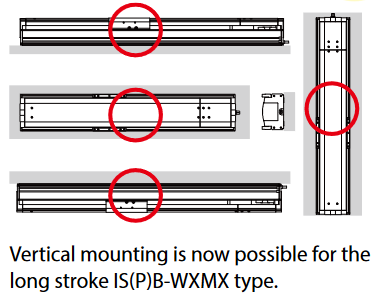

- Expended Mounting Method: No limitations on the mount

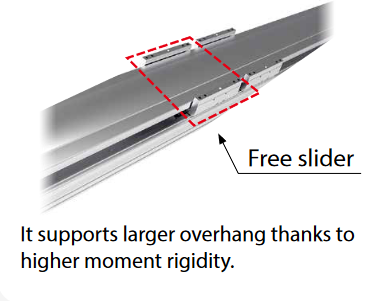

- Added Option: Double slider specification is selectable

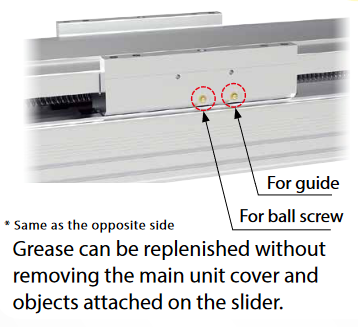

- Improved Maintainability: Easy grease replenishing
Download IAI Large Single-Axis Robot Brochure
Talk to one of our experts today at (855) 737-4716, or fill out our online form to learn more.
Short description
Mid Support suppresses deflection of the ball screw, making long-stroke and high-speed operations possible.
