A pulse press is an actuator combining a stepper motor and load cell, that is capable of performing power control. It provides a loading repeatability of ±1.0% F.S. (full scale), based on feedback from the load cell.
IAI ROBO Cylinder? Pulse Press RCP6-RRA Features
- Capable of both pushing and pulling
- Less than half the cost of a servo press
- Select from several types based on push force from 60N to 2,000N
IAI ROBO Cylinder? Pulse Press RCP6-RRA Benefits
- Capable of both pushing and pulling – Both pushing and pulling are supported in the load direction. There are no limitations on pushing or pulling times.
- Reasonable cost – Equipped with a stepper motor, it is less than half the cost of an IAI servo press.

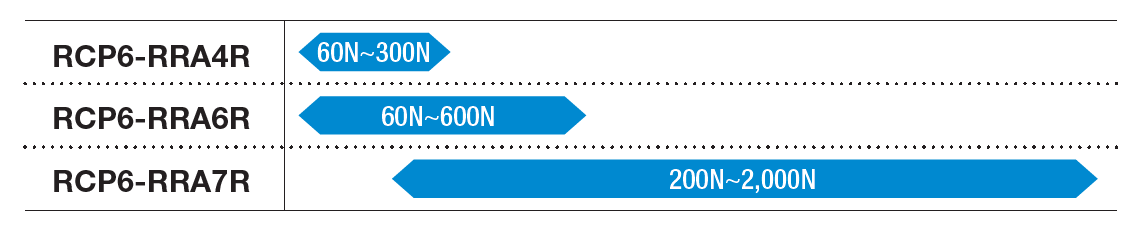

- Lineup – Select from several types based on use (push force from 60N to 2,000N).
lineup
lineup

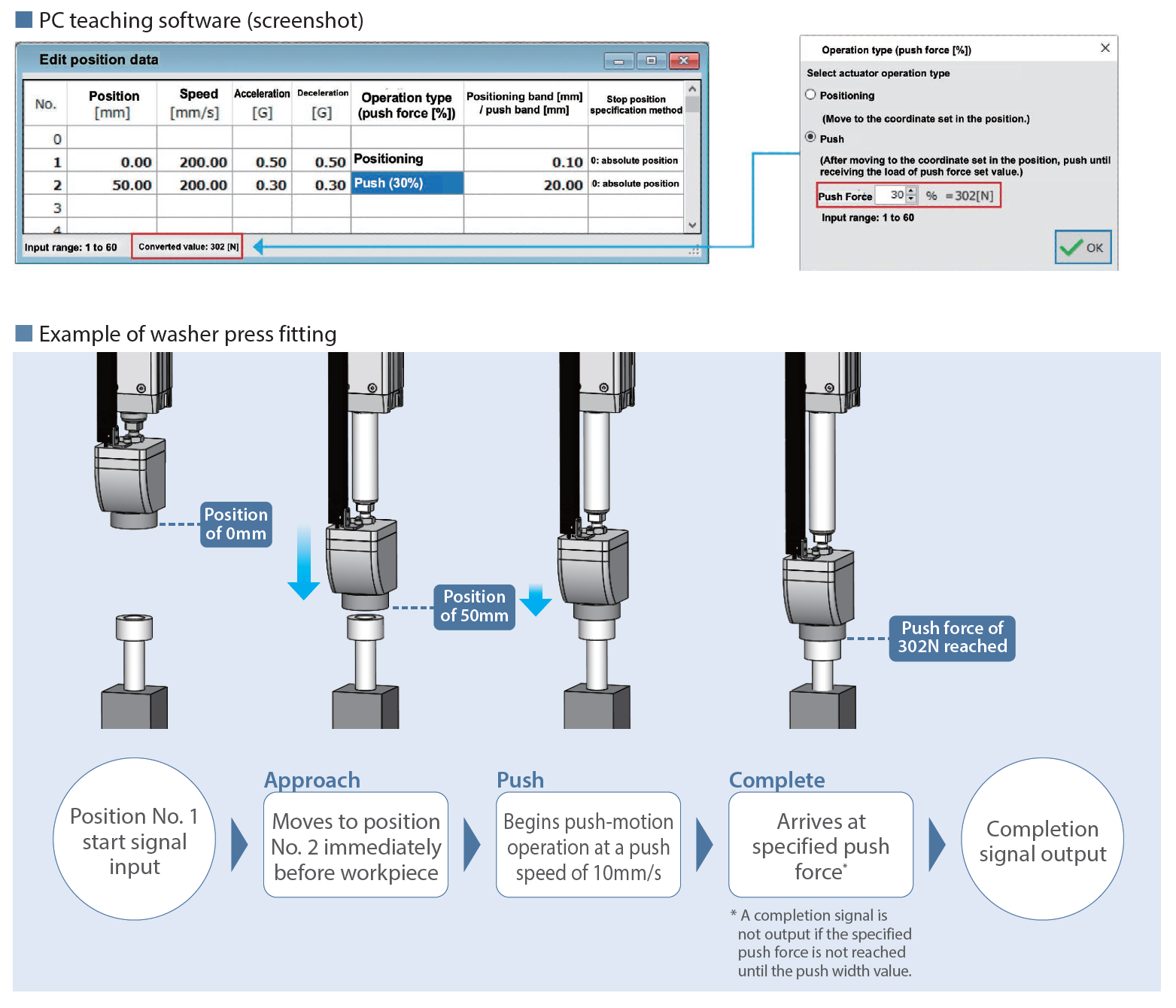

Easy Setup Using a Dedicated Tool
Pushing/pulling can easily be setup using the PC teaching software or teaching pendant.
Easy Setup Using a Dedicated Tool
Easy Setup Using a Dedicated Tool
IAI ROBO Cylinder? Pulse Press RCP6-RRA Specifications
IAI ROBO Cylinder? Pulse Press RCP6-RRA Specifications
IAI ROBO Cylinder? Pulse Press RCP6-RRA Specifications
Download IAI ROBO Cylinder? Pulse Press RCP6-RRA Catalog
Talk to one of our experts today at (855) 737-4716, or fill out our online form to learn more.
Short description
A pulse press is an actuator combining a stepper motor and load cell, that is capable of performing power control.
