ELECYLINDER? Long Stroke Slider Type Features
Compact with long stroke: Longer stroke has been achieved while keeping the housing compact. Usable even in locations with limited installation space.
High rigidity and long stroke: With a four-row ball circulating type with a built-in linear guide, heavy weights and large overhangs are supported.
Easy teaching by wireless teaching controller: Thanks to wireless communication, an ELECYLINDER? equipped with a cover or located in a hard-to-reach places can be connected.
- Cable connection unnecessary
- Operations are possible from a remote place
- Connectable up to 16 axes
Side-mounted motor specification: The side-mounted motor specifcation is suitable when there is limited longitudinal space.
Wireless teaching controller options:
- Basic settings (position, acceleration, speed, deceleration)
- Present position upload - Test runs
- Jogging - Brake release
- Motor power ON/OFF
- Cycle time confirmation
- Error display - Alarm reset
Side-mounted motor specification: The side-mounted motor specification is suitable when there is limited longitudinal space.
High Rigidity and Long Stroke: A built-in four-row ball circulating type linear guide supports heavy weights and large overhangs.
Unlimited Installation Orientation: For vertical, horizontal, and ceiling mounting.

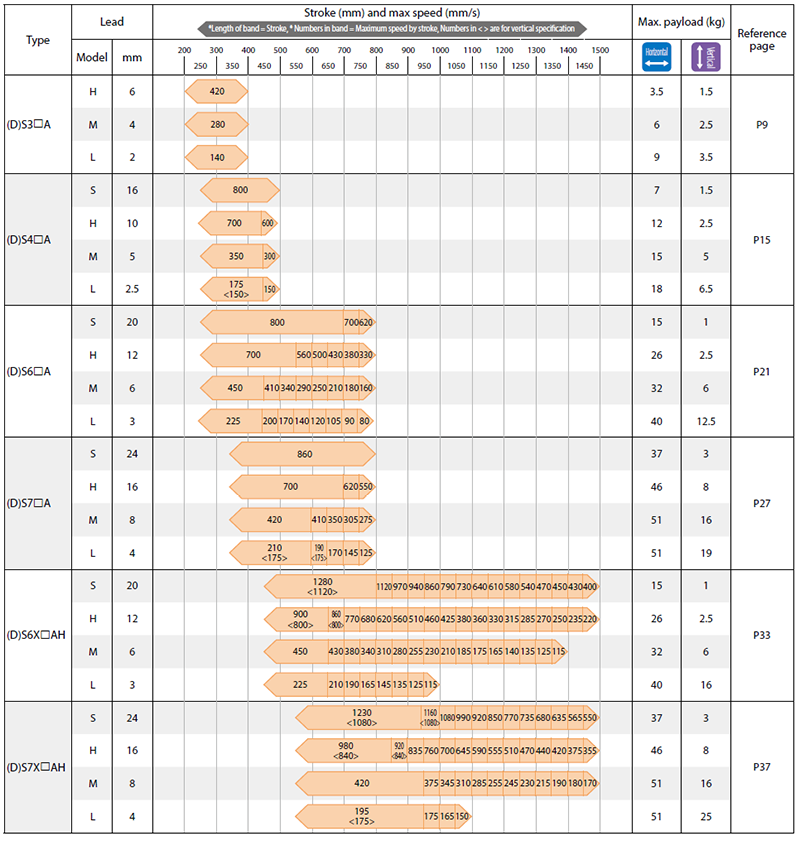

ELECYLINDER Long Stroke Slider Type Specifications
Download IAI's ELECYLINDER? Slider Type - Long Stroke Datasheet
Talk to one of our experts today at (855) 737-4716, or fill out our online form to learn more.
Long stroke slider type ideal for lifting applications.
