Ideal for control panels, food, beverage, and pharmaceutical facilities, this LED Work Light is IP67/IP69K rated and ECOLAB certified, built to withstand high pressure washdowns, chemical cleaning, and sanitization processes.
The PATLITE CLA?02 LED Work Light is a durable, high-performance LED lighting solution engineered for demanding industrial environments — especially food, beverage, and pharmaceutical facilities. Housed in a rugged body that meets IP67 / IP69K standards and certified by ECOLAB, it resists water, dust, and chemical exposure.
Its bright, reliable LED output ensures clear, even illumination even in harsh or hygienic-sensitive settings, making it ideal for control panels, cleanrooms, and wash-down environments. The CLA-02 blends long-lasting performance and easy maintenance, offering a robust lighting option for workplaces where cleanliness and reliability are critical.
Features
CLA-02 LED Work Lights Features

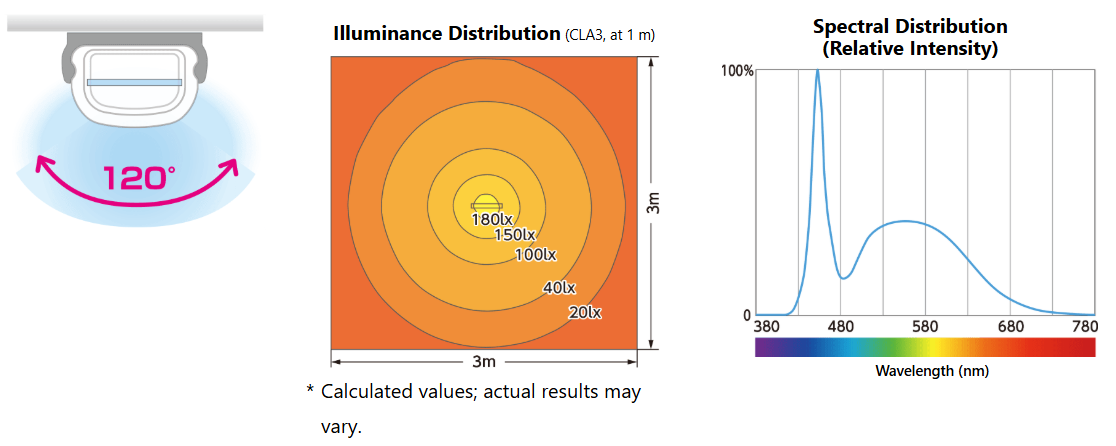

- Brighter and More Energy Efficient - Rugged Build with Excellent Light Distribution:
Compared to prior models, the luminous flux is increased by 65%, and the illuminance is increased by 71%. The seamless milky-white housing delivers uniform brightness across a 120° area. Luminous efficacy has also been improved, making CLA-02 both bright and energy efficient.
(*for 300mm daylight model)

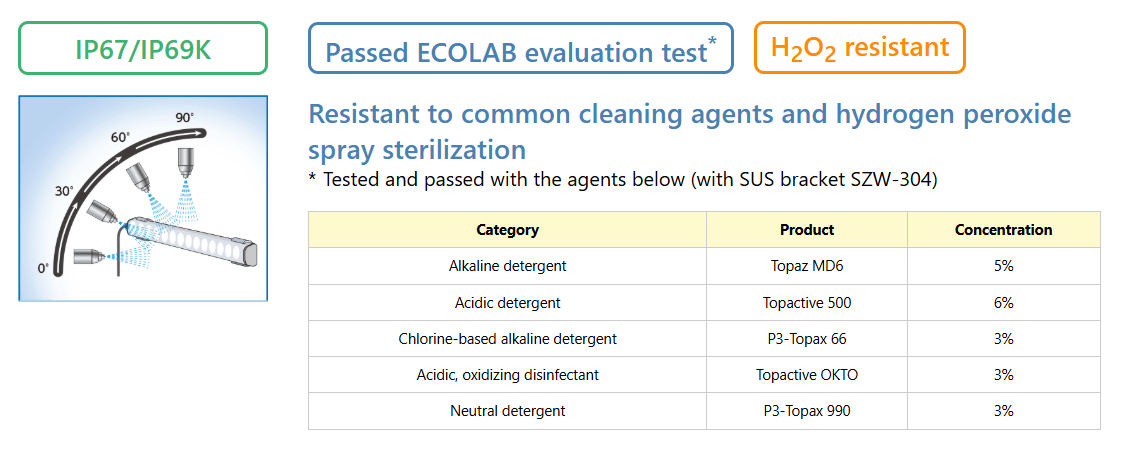

- High Durability and Hygienic Design - Withstands High-Pressure/High-Temperature Washdown, Chemical Disinfection, and Sterilization:
Impact-resistant polycarbonate body prevents breakage and foreign-object ingress. Operating range ?40°C to +60°C. IP69K rating suits cold storage and equipment requiring high-temp cleaning.

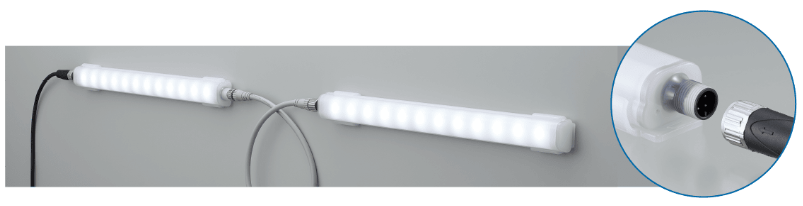

Fast Installation, Less Wiring:
In addition to the cable connection (JS type), the CLA-02 offers an M12 connector (CS type) and an M12 connector daisy-chain option (CL type) to reduce wiring errors and labor.

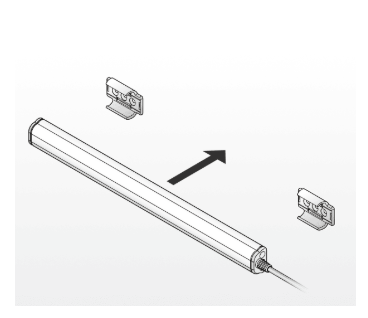

Slim housing mounts easily with the rear bracket (SZW-301) included with the CLA-02 unit. Optional magnetic and SUS brackets are available separately.

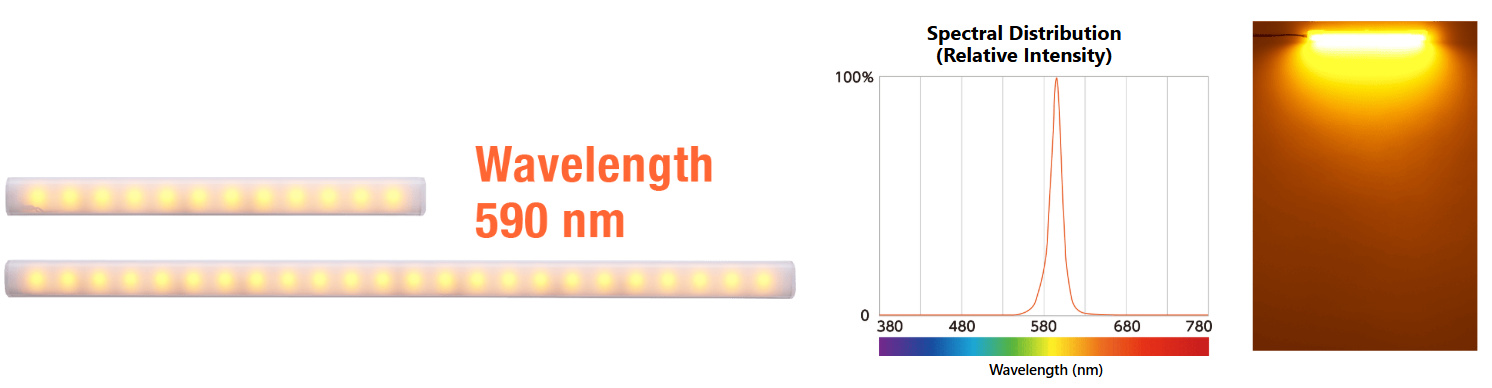

- Amber LED for Semiconductor Use:
The CLA-02 Amber model is optimized for semiconductor photolithography, featuring a peak wavelength of 590 nm with negligible blue light output (430–490 nm), making it suitable for cleanroom lighting.
Applications
CLA-02 LED Work Lights Applications
- Control Panel
- Milky-white housing provides uniform light distribution
- Less wiring with M12 connector daisy-chain
- Quick panel installation with optional magnetic bracket SZW-302
- Food Processing Line
- IP69K rating for high-pressure, high-temp washdown
- H2O2 resistance
- If using alkaline detergents, confirm compatibility before use.
- Semiconductor Factory
- 590 nm peak wavelength spectrum
- Two sizes: 300 mm, 600 mm
- Luminous flux: 140 lm (300 mm), 280 lm (600 mm)
Specifications
CLA-02 LED Work Lights Specifications
| Category | Specification |
|---|---|
| Product Name | PATLITE CLA-02 LED Work Light Series |
| Rated Voltage | 24V DC (Polarized) |
| Voltage Range | ±10% |
| Protection Rating | IP6X, IPX6, IPX7, IPX9K (excluding cables) |
| Operating Temperature | ?40°C to +60°C |
| Storage Temperature | ?45°C to +70°C |
| Operating / Storage Humidity | < 90% RH, non-condensing |
| Mounting Location | Indoor |
| Color Options | Daylight (6500K), Amber (590 nm) |
| Cover Material | Polycarbonate (PC) |
| Cable Material | PVC (AWG22×2) |
| Bracket Material | PC (SZW-301) |
| Certifications | UL 2108, CSA C22.2 No. 250.2, CE, UKCA, FCC Class A, ICES-003 Class A, EN IEC 61000-6-4/6-2, EN IEC 63000, KS C 9610-6-4/6-2 |
| Wiring Options | JSN (hardwired cable), CSN (M12 connector), CLN (M12 daisy-chain link) |
| M12 Pin Assignments | Pin 1: +24V, Pin 3: ?24V, Pins 2 & 4: NC |
| Model Lengths (mm) | CLA1: 125 / CLA2: 225 / CLA3: 325 / CLA6: 625 / CLA9: 925 |
| Illuminated Lengths (mm) | CLA1: 100 / CLA2: 200 / CLA3: 300 / CLA6: 600 / CLA9: 900 |
| Luminous Flux (lm) | CLA1: 235 / CLA2: 480 / CLA3: 595 / CLA3-Amber: 140 / CLA6: 1,190 / CLA6-Amber: 280 / CLA9: 1,785 |
| Illuminance @1m (lx) | CLA1: 72 / CLA2: 82 / CLA3: 145 / CLA3-Amber: 43 / CLA6: 350 / CLA6-Amber: 280 / CLA9: 480 |
| Rated Power Consumption | CLA1: 1.9W / CLA2: 3.8W / CLA3: 4.5W / CLA3-Amber: 3.8W / CLA6: 9.0W / CLA6-Amber: 7.6W / CLA9: 13.5W |
| Max Power Consumption | CLA1: 2.4W / CLA2: 4.8W / CLA3: 5.7W / CLA6: 11.4W / CLA9: 17.2W |
| Mass (±10%) | CLA1-CSN: 0.06 kg / CLA1-JSN: 0.15 kg / CLA2-CSN: 0.10 kg / CLA2-JSN: 0.19 kg / CLA3-CSN: 0.14 kg / CLA3-JSN: 0.23 kg / CLA3-CLN: 0.14 kg / CLA6-CSN: 0.25 kg / CLA6-JSN: 0.34 kg / CLA9-CSN: 0.37 kg / CLA9-JSN: 0.46 kg |
