The AVENTICS? Series AS3-SV consists of redundant 3/2 valves with external pilot and spring return according to the requirements of ISO 13849-1-2 for safety functions safe exhaust and prevention against unexpected start-ups. The valve only activates the compressed air supply when all conditions for a safe system start-up have been met. Protection against unexpected pressurization stops the cylinder from being actuated unintentionally, preventing potential accidents. In the event of a machine fault or emergency OFF, the valve exhausts the operating lines, ensuring a de-energized and thus safe state. The AS3-SV is ideal for use indoor switches and light barriers and as a safety module for emergency OFF applications.

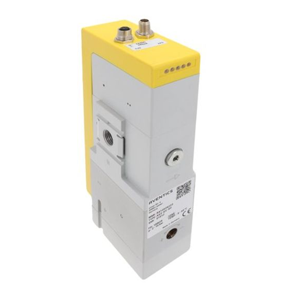

AVENTICS? Series AS3-SV Directional Safety Valve Features
- Category 4 performance level "e" according to ISO 13849-1
- Adjustable soft start function via throttle screw
- G1/4 port for pressure gauge or pressure sensors PE5
- 5 LED displays for function monitoring and diagnosis
- Electrical connection via M12 plug
